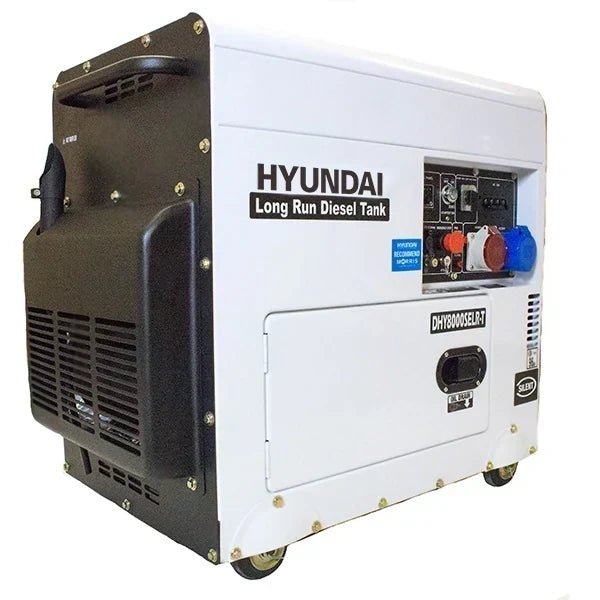

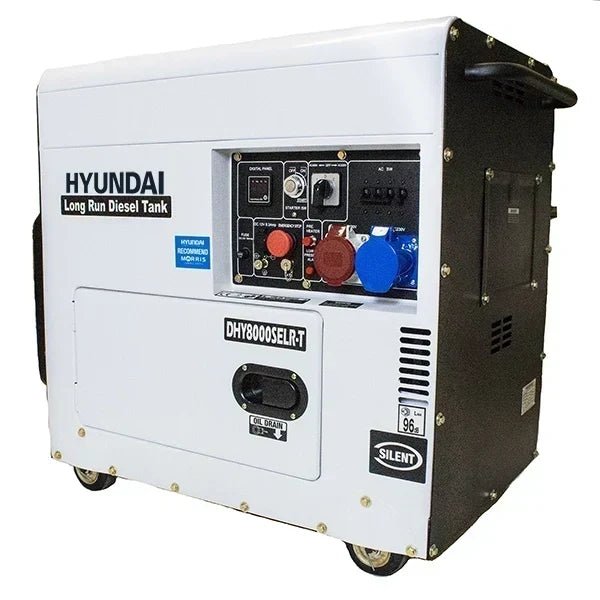

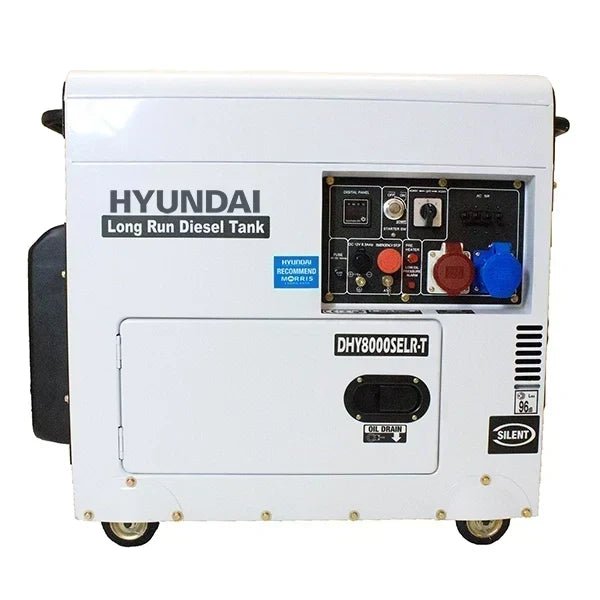

5.8kW/7.5kVA Multi-Phase Silenced Long Run Standby Diesel Generator
£299.00
Price includes VAT where applicable. Free UK delivery.
14-day right to cancelChanged your mind? You can cancel within 14 days of receiving your order. How returns work14 DAYS
- Free UK delivery on every order
- Secure, encrypted checkout
- Help by email or live chat
Description
In The Box:
- Main Unit, 3 Spanners
- Screwdriver
- 12v DC Charging Cable
- 2 Manual Start Keys
- Fuel Filter
- 1 x 16A 3-phase plug
- 1 x 32A 230v plug
- Service Kit
Features:

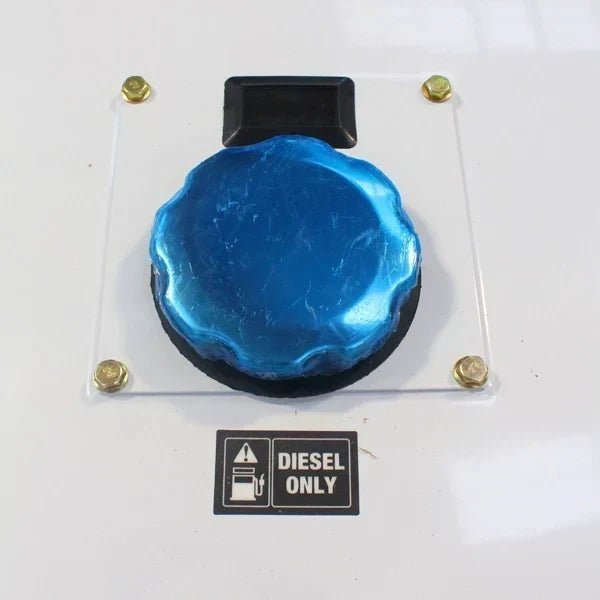

- Equipped with a 25L fuel tank for an increased running time of up to 30 hours.
- Multi-phase - Single & Three Phase capabilities, ideal for garages and workshops.
- Powered by a 4-stroke, air-cooled diesel engine.
- Produces a maximum output of 5.8kW / 7.5kVA.
- Uses ATS capabilities to automatically start and shutdown during a power cut. ATS is sold separately.
- Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
- Covered by a 1-year standard warranty.
- Full UK service and parts operation to maintain your generator for years to come.
Technical Specification:
- Model - DHY8000SELR-T
- Rated/Prime kVA* - 6.3
- Rated/Prime kW - 5
- Max/Standby kVA* - 7.25
- Max/Standby kW - 5.8
- Phase - Single / 3-Phase
- Voltage - 230 / 415
- Connection Method(s) - Sockets - 1 x 400V/16A 1 x 230V/32A
- Rated Speed (RPM) - 3000
- Frequency (Hz) - 50
- Max/Continuous Current (Amps) - 230v 25 / 21 - 400v 10.5 / 9
- Power Factor (Cosφ) - 1 (Single Phase) / 0.8 (3-Phase)
- Fuel/Power Source - Diesel
- Power Output (hp) @ 3000rpm - 9
- Engine Displacement (CC) - 456
- No. of Cylinders - 1
- Recommended Oil Type - 15w40 / 10w40
- Oil Capacity (Litres) - 1.65
- Oil Filter Part No. - D450-B9+D450-B8
- Aspiration - Natural
- Fuel Regulation/Governor System - Mechanical
- Fuel Consumption (100% Load) [Litres] - 1.71
- Fuel Filter Part No. - D450-R05
- Cooling Forced - Air-Cooled
- Alternator Model - D450/500-S01-2
- Breakers - 3P 9.5A 1P 21A
- Alternator Type - Brushed
- Voltage Regulation - AVR
- Air Filter Part No. - D450-I4
- Net Weight (kg) - 158
- Gross Weight (kg) - 167
- Wheel Kit? - Yes
- Dimensions L x W x H (mm) - 960 x 560 x 890
- Battery (Ah) - 12v 36a/h
- ATS / MTS Compatible - Yes

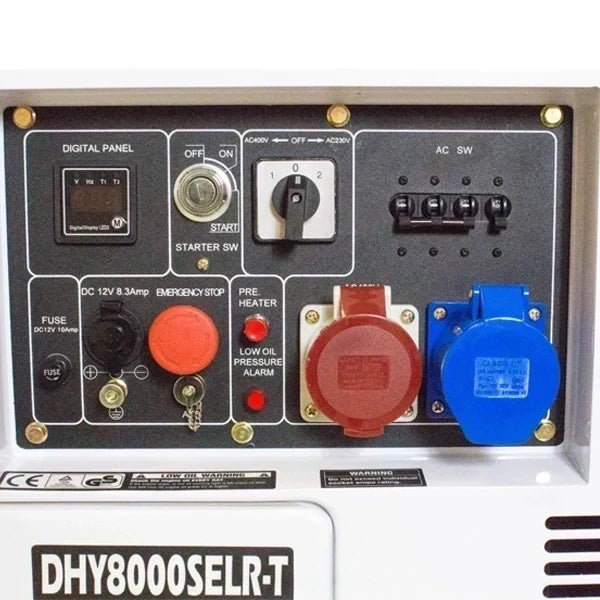

- Control Panel - LED3 DISPLAY
- Model EAN - 600231973434
- Warranty - 1 Year / 1000 Hours* (Terms apply)
